Laminated busbar, also known as laminated busbar, is a kind of connecting bus with a multi-level composite structure, and the laminated busbar can be counted as a highway in the power distribution system. Compared to the complex, cumbersome, time-consuming and labor-intensive wiring methods used, cascading busbars provide a highly technical and well-structured distribution system. It has the characteristics of repeatable electrical performance, low inductive impedance, strong anti-interference ability and high reliability, so it can be used as an electrical connection component for some high-power modules.
Certificate:
- Country Of Origin : China
- Delivery Time : Consult the account manager
Product Details
Technical characteristics:
· IGBT contacts adopt a new tensile structure (simplified installation); New tensile structure at capacitive contacts (simplified installation)

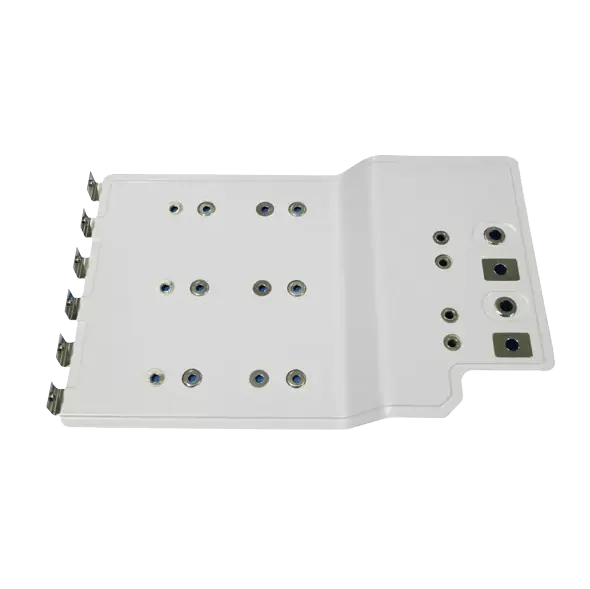

Photovoltaic cascading busbar
| Name | Parameters |
| Voltage | 1000V DC |
| current | 1200A |
| Insulation and voltage resistance | 3.0 KV -AC-60s, no breakdown, no flicker (leakage current <5mA) |
| Partial discharge | +/- AC1.1KV(≤10PC)，+/N 、-/NAC550V(≤10PC) |
Photovoltaic cascading busbar
| Name | Parameters |
| Voltage | 1000V DC |
| current | 600A |
| Insulation and voltage resistance | 3.5 KV -DC-60s, no breakdown, no flicker (leakage current <2mA) |
Photovoltaic cascading busbar
| Name | Parameters |
| Voltage | 1000V DC |
| current | 1285A |
| Insulation and voltage resistance | 5.0 KV -DC-60s, no breakdown, no flicker (leakage current ≤2mA) |
| Partial discharge | AC 900V(＜10 pC) |
