Three-Phase Isolation Transformer for Industrial Power Distribution (Copy)
Three-Phase Isolation Transformer for Industrial Power Distribution (Copy)

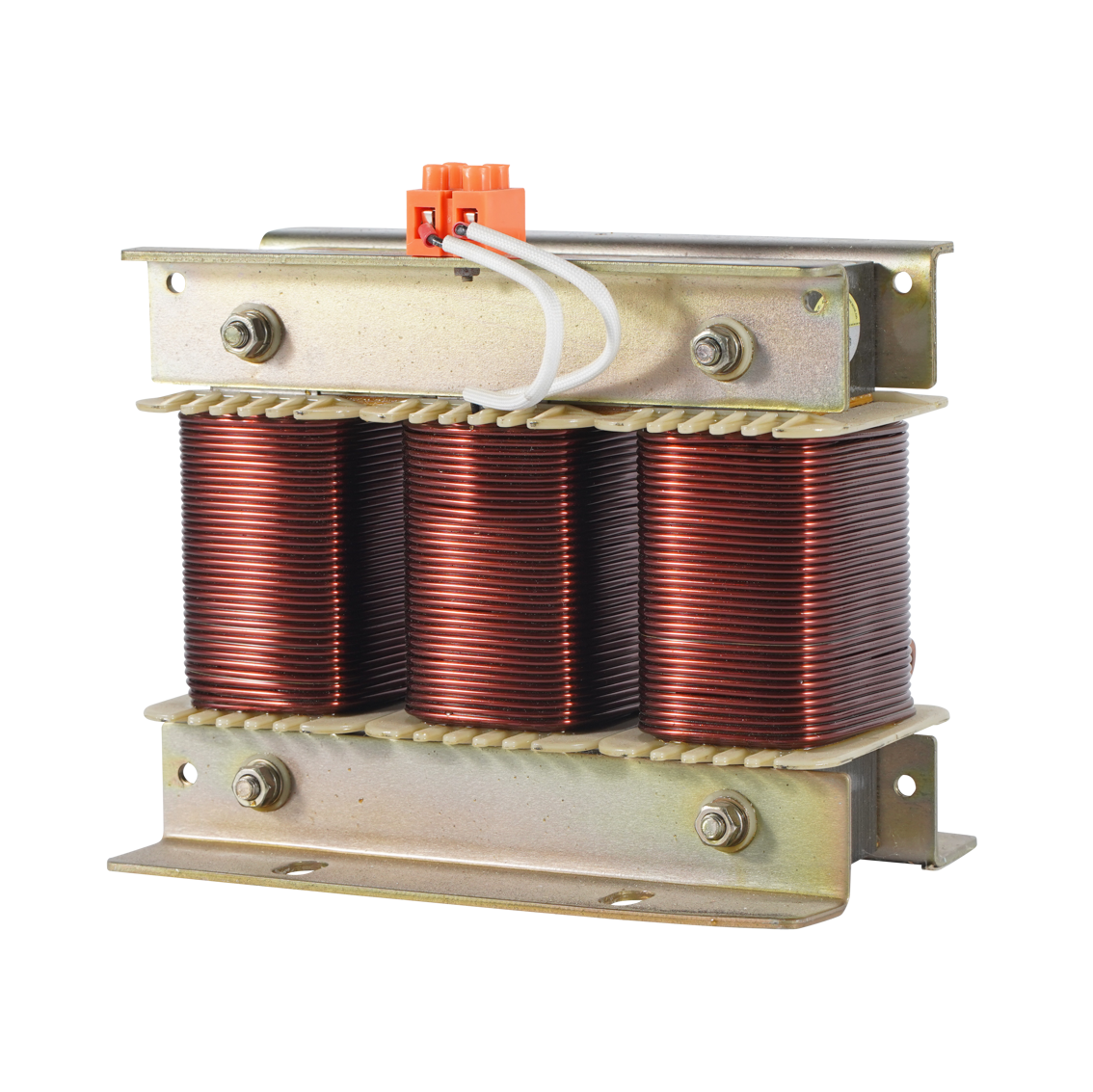

This three-phase isolation transformer is engineered to provide reliable voltage conversion, electrical isolation, and noise suppression for industrial and commercial power systems. It features high-purity copper windings and a robust steel frame, ensuring low energy loss, excellent heat dissipation, and stable performance in demanding environments. The integrated terminal block enables quick, secure wiring, making it ideal for applications such as factory automation, medical equipment, and data centers where power quality and safety are critical.
Technical Specifications
- Phase Configuration: 3-phase, 3-wire / 4-wire configurable
- Voltage Range: Primary 200V–480V AC, Secondary 200V–480V AC (customizable)
- Frequency Rating: 50Hz / 60Hz
- Winding Material: High-purity oxygen-free copper for low resistance and high conductivity
- Insulation Class: Class F (155°C) with reinforced insulation layers
- Efficiency: ≥95% at full load
- Isolation Voltage: ≥4kV AC (1 minute withstand test)
- Overload Capacity: 120% rated load for 60 seconds
- Mounting Type: Floor or panel-mounted via heavy-duty steel brackets
- Terminal Design: Plug-in terminal block for fast, tool-free wiring
Application Scenarios
- Industrial Automation
Used to isolate and stabilize power for PLC systems, servo motors, and robotics, protecting sensitive electronics from grid fluctuations and harmonic interference.
- Medical Equipment
Ensures electrical safety and noise reduction for diagnostic devices, patient monitors, and surgical tools, meeting strict medical-grade isolation standards.
- Data Centers & IT Infrastructure
Provides clean, isolated power to server racks and network equipment, minimizing data corruption caused by voltage spikes or ground loops.
- Commercial Building Systems
Supports HVAC controls, lighting systems, and security panels by isolating circuits and preventing ground fault propagation.
- Marine & Offshore Applications
Withstands harsh environments and stabilizes power for navigation systems and communication equipment on ships and offshore platforms.
